Solenoid Valve Motor
Waterproof rating: IP68
Lead wire length: 1m
Filter grade: Minimum 80 mesh
Hydraulic outlet: 1/8 inch internal thread
Current: Starting current (In rush) 90mA; Holding current (Holding) 75mA
Voltage type: AC24V/DC24V/DC12-40V Latching
Product Details

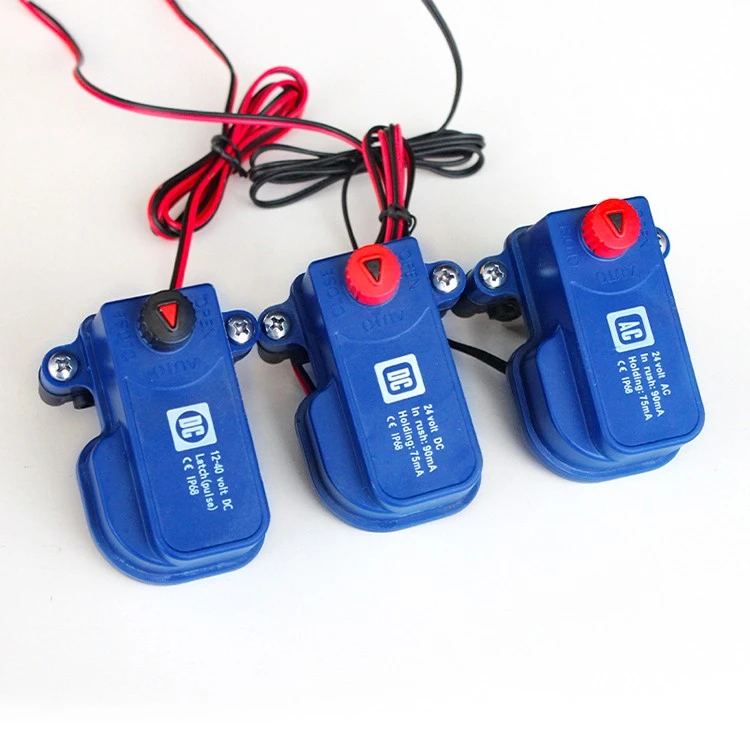

This solenoid valve motor is motor-driven solenoid actuator designed specifically for agricultural drip irrigation, micro-sprinkler, and water-saving irrigation systems. It features a blue plastic housing (IP68 fully waterproof), a red triangular knob on top (manual on/off/AUTO switch), and comes with a red/black power cord (approximately 1m long). It is compact and flexible in installation. It is commonly used to replace or upgrade the coil of traditional solenoid valves, and when used with Y-type or T-type main valves, it enables remote automatic on/off control.
Video Description
Features
Ultra-low power consumption: 90mA startup, 75mA hold (far lower than the hundreds of mA of traditional solenoid valves), zero standby power consumption after the pulse, extending battery/solar power lifespan several times over.

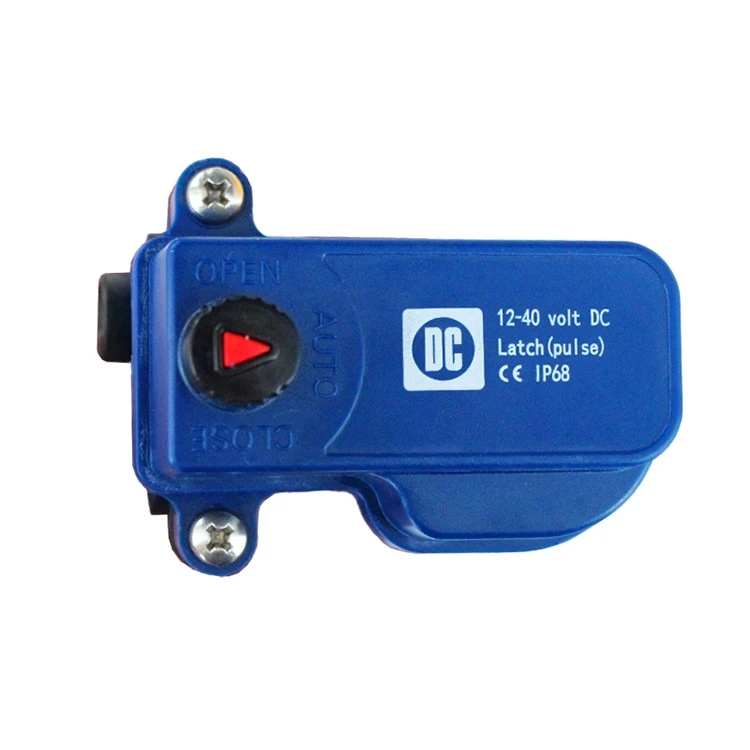

Manual three-level control: A knob can switch between OPEN (manual full opening), AUTO (automatic control by the controller), and CLOSE (manual full closing), facilitating on-site debugging, maintenance, or emergency response.
IP68 waterproof: Fully sealed plastic housing + waterproof cable, suitable for outdoor buried, humid, or rainy environments, highly durable.
Easy installation and compatibility: 1/8" hydraulic outlet standard connection to the main valve control chamber, compatible with most Y-type/T-type irrigation main valves.
Anti-clogging: Recommended 80-mesh or higher filter to ensure long-term stable operation.
Principle
Closed State: No pulse → Motor remains closed → Main valve diaphragm upper chamber pressurized → Valve closed.
Open State: Controller sends short positive/negative pulses → Motor briefly rotates → Changes internal valve core or gear position → Opens pilot hole → Upper chamber drains → Main valve diaphragm lifts → Water flows smoothly.
Hold: Motor stops after pulse ends; mechanical/magnetic hold in current position, no continuous power required.
Manual Mode: Knob directly mechanically drives internal structure for manual opening/closing.
This solenoid valve motor, with its extremely low pulse power consumption, IP68 waterproof rating, three-level manual control, and reliable motor drive, is ideal for solar-powered smart irrigation and automation in remote areas.
