Mist Cooling System with Pump

This mist cooling system with pump adopts a DC12V pump design, with a power of 30W, and can provide a stable 3L/min water flow rate. The water source is transported through a 1/4 "pipe diameter, equipped with a 6-meter flexible pipe and 6 precision nozzles, which can generate fine water mist and quickly evaporate and absorb heat. The system is lightweight, easy to carry and store, suitable for temporary or mobile use scenarios such as outdoor picnics, carport cooling, or small greenhouse humidification. Compared with traditional air conditioning or fans, it is more energy-efficient and environmentally friendly, without generating noise or high electricity bills.

How to install mist cooling system with pump? As follow:

Step 1: Assemble the nozzle and pipeline

Cut the 1/4 "black hose into the length you need with scissors

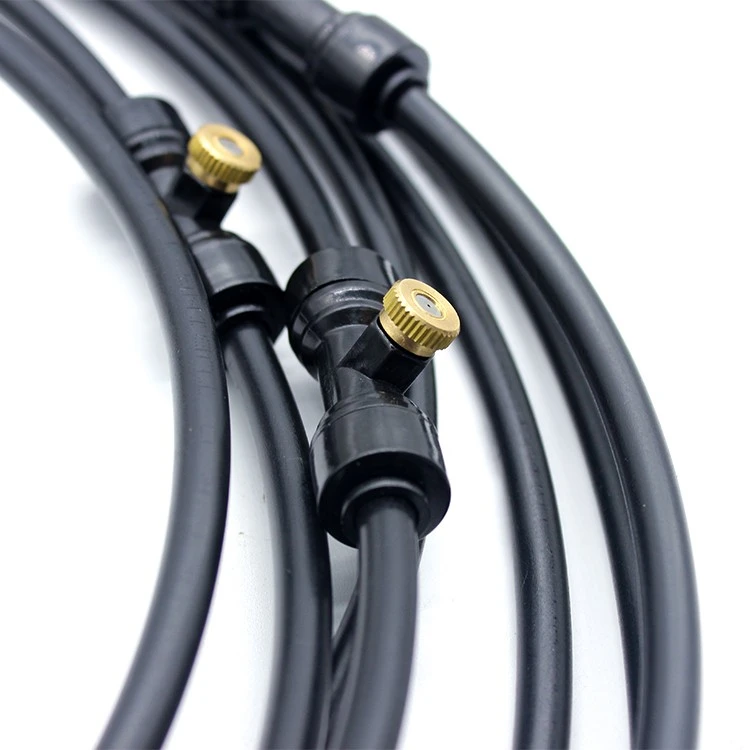

First, insert the T (TEE) into one end of the tube, and then tighten the nozzle onto the tee.

Repeat this step to connect all 6 nozzles and seal the last section of the pipe with an end plug.

Step 2: Connect the pump head connector

There are two white quick couplings on the pump:

One end connector → Connected with the pipe and the filter (inlet end)

Connect the other end of the connector to the pipe (outlet end) where you have already installed the nozzle

Lock with a gentle push, no tools needed.

Step 3: Connect the power to start using

Insert the power cord of the pump into the adapter.

Insert the adapter into a 220V socket.

After power on, the pump will automatically start and start fogging!
