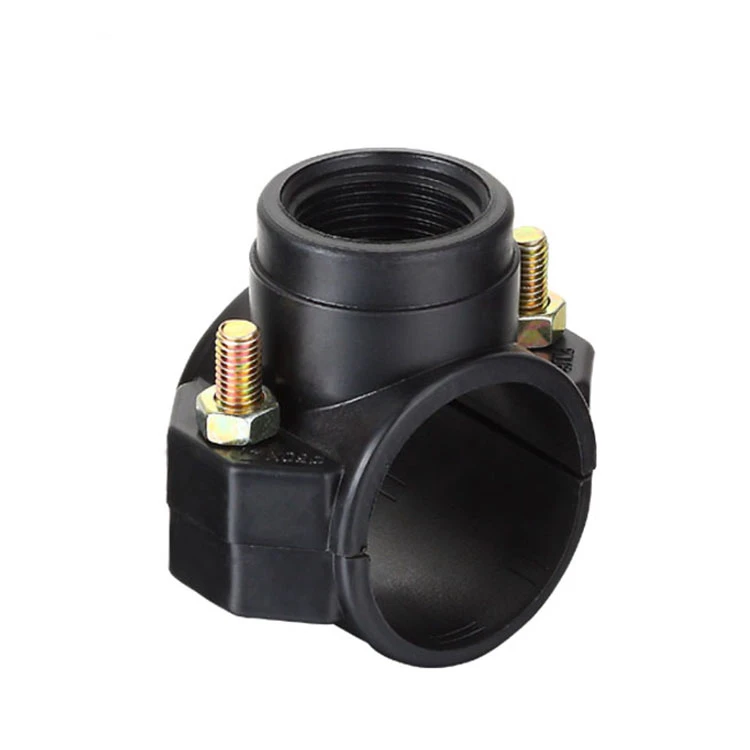

Saddle Clamp For PVC Pipe
Material: Reinforced polypropylene (PP) or nylon + stainless steel/galvanized bolts
Applicable main pipe outer diameter:
25/32/40/50/63/75/90/110/125/140/160/180/200/225/250/315mm
Outlet thread: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Working pressure: PN6–PN10 (6–10 bar / 90–150 PSI)
Xiamen Superb Technology Co., Ltd. is one of the leading manufacturers and suppliers of saddle clamp for pvc pipe in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to wholesale bulk premium saddle clamp for pvc pipe from our factory.
Product Details
The saddle clamp for PVC pipe is an important tool for branching water sources in irrigation systems. It is injection molded from high-strength engineering plastic, with a semi-circular saddle, bolt fasteners, and threaded outlets on the side. After installation, branch pipes can be directly routed through holes drilled in the existing PVC/PE main pipe. Common specifications cover main pipe outer diameters from 25mm to 315mm, encompassing all pipe sizes for agricultural drip irrigation, garden sprinkler irrigation, municipal greening, orchard micro-sprinklers, and greenhouse water supply.
Installation Steps
Mark the location where water needs to be drawn from the main pipe. Drill a hole using a hole saw (the hole diameter should be slightly smaller than the inner diameter of the outlet).
Clean any burrs from the hole. Align the saddle with the hole (insert the outlet into the hole), placing both sides symmetrically.
Insert the bolts and tighten the nuts evenly and alternately.
Connect the branch pipe, ball valve, or quick coupling; water can then be supplied.
Why need it in irrigation system?
The main function of a saddle clamp for PVC pipe is to quickly, safely, and reliably create openings in existing PVC/PE main pipes to allow for branch pipes or additional water intake points. It is a core component of modern irrigation systems.
Uninterrupted water supply during pipe opening
Quickly adding branch pipes/zones
Avoiding the risks associated with cutting the main pipe
Easy for future maintenance and expansion
